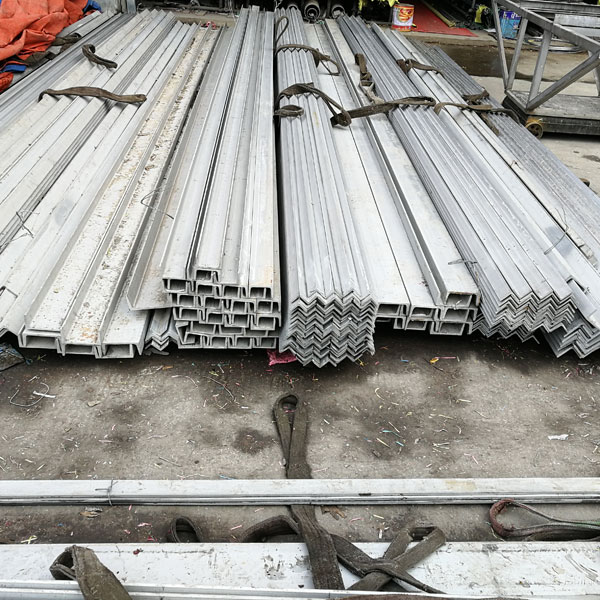

| Product name | Stainless steel Round bar/Square Bar/Angle Bar/Flat Bar | |||
| Material | 201,202 | 301,304,304L,TP304,TP304L,309S 310S,316,316L,316Ti,TP316,TP316L, 317,317L,321,347,347H,TP347,TP347H |
405,409,410,410s,420,430 | |
| Standard | ASTM,JIS,DIN,EN | |||
| Round Bar | 3mm-500mm | |||
| Square Bar | 2*2mm-500*500mm | |||
| Angle Bar | 0.5mm*4mm*4mm-20mm*400mm*400mm | |||
| Flat Bar | Thickness | 0.3-200mm | ||
| Width | 1-2500mm | |||
| Length | 2m,5.8m,6m,or random length | |||
| Surface | Pickling,Bright,Polished | |||
| Application | 1.Construction 2.Architecture 3.Hardware Vehicles 4.Machinery Components 5.Oil and Chemical Industry 6.Food and Agricultural 7.Power Station etc |
|||
| Crade | C | Si | Mn | P | S | Ni | Cr | Mo | |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤0.03 | 3.50-5.50 | 16.0-18.0 | - | |
| 202 | ≤0.15 | ≤1.0 | 7.5-10.0 | ≤0.06 | ≤0.03 | 4.0-6.0 | 17.0-19.0 | - | |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.06 | ≤0.03 | 6.0-8.0 | 16.0-18.0 | - | |
| 302 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.06 | ≤0.03 | 8.0-10.0 | 17.0-19.0 | - | |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.06 | ≤0.03 | 8.0-11.0 | 18.0-20.0 | - | |
| 304L | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.06 | ≤0.03 | 9.0-12.0 | 18.0-20.0 | - | |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.06 | ≤0.03 | 12.0-15.0 | 22.0-24.0 | - | |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.06 | ≤0.03 | 10.0-14.0 | 24.0-26.0 | - | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.06 | ≤0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |
| 316L | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.06 | ≤0.03 | 11.0-14.0 | 17.0-19.0 | 2.0-3.0 | |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-12.0 | 17.0-19.0 | - | |
| 630(17-4PH) | ≤0.07 | ≤1.00 | ≤1.00 | ≤0.035 | ≤0.030 | 3.00-5.00 | 15.5-17.5 | - | |
| 631 | ≤0.09 | ≤1.00 | ≤1.00 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.00-18.00 | - | |
| 904L | ≤2.0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0-28.0 | 19.00-23.0 | 4.0-5.0 | |
| 2205 | ≤0.03 | ≤1.0 | ≤0.80 | ≤0.03 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 | |
| 2507 | ≤0.03 | ≤0.80 | ≤1.5 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 | |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤0.03 | 0.19-0.22 | 0.24-26.0 | - | |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤0.03 | - | 11.5-13.5 | - | |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.04 | ≤0.03 | ≤0.06 | 16.0-18.0 | - | |
